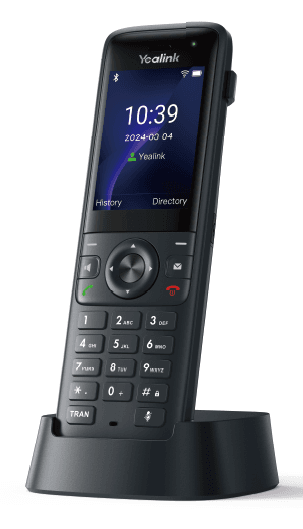

Yealink AX83H Premium WIFI handset
Model: AX83H Handset
Description
The Yealink AX83H is a feature-rich Wi-Fi handset (Connects directly to your broadband router over wifi – No base station required), designed for flexibility and ease of use. It connects directly to your Wi-Fi, offers a large 2.4″ colour display, dual-band connectivity, and extended battery performance with up to 9 hours of talk time. Noise reduction ensures clearer conversations, making it ideal for families or elderly users.
Hearing aid compatible and built-in hands free speakerphone and bluetooth.

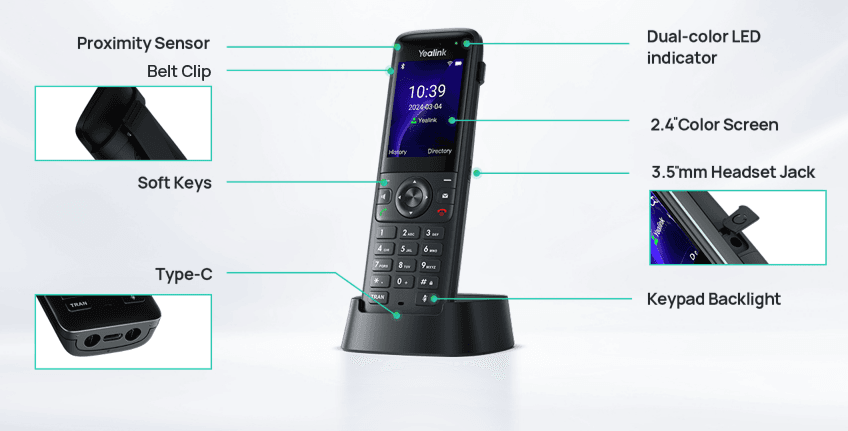

Features
Network Features：
- 2.4″ 240×320 TFT color screen
- Up to 9-hour talk time
- Up to 200-hour standby time
- Dual Band 2.4G/5G Wi-Fi 802.11 a/b/g/n/ac/ax
- Support IEEE802.11k/v/r roaming
- Bluetooth 5.0 for headset
- HD audio and noise cancellation
- TRANS and Mute keys, 9 configurable keys
- Type-C charging
- Wall mountable and stand mountable
- Support YDMP/YMCS
Specifications
| Specifications | Description |
|---|---|
| Audio Features | • Optimal HD audio: HD handset, HD speaker • Hearing aid compatible (HAC) compliant • Full-duplex hands-free speakerphone with AEC • Smart Noise Cancellation Technology |
| Display and Indicator | • 2.4″ 240×320 TFT color screen • Keypad backlight • Vibration • Wallpaper and screensaver • LED for call and message waiting indication • Multilingual user interface • Caller ID with name, number, and avatar |
| Phone Features | • 4 VoIP accounts • Speed dial, redial • Call hold/call transfer/call waiting/call forward • Emergency call • Mute, DND • Auto answer • Hotline • Recall • Ring tone selection/import/delete • Set date time manually or automatically • Customizable softkey |
| Peripherals | • Support Bluetooth headset – Basic functions: answer/end/mute call – Enhanced functions: redial/call hold/volume adjustment two-way synchronization |
| Directory | • Local phonebook up to 1000 entries • Blocklist • Google contacts • Smart dialing • Phonebook search/import/export • Call history: All call/dialed/received/missed/forwarded |
| Feature Keys | • 2 soft keys • 6 function keys: dial, hang up, handsfree, voice message, mute, call transfer • Navigation key and OK key |
| Interface | • 1 x 3.5 mm headset jack • 1 x Type-C port |
| Network | • Built-in dual-band Wi-Fi: – Network standard: 2.4G&5G, IEEE802.11a/b/g/n/ac/ax – Frequency range: 2.4 GHz/ 5.0 GHz – Roaming: IEEE802.11 k/r/v • Built-in Bluetooth 5.0: – Connecting to Bluetooth Headset • IP Assignment: static/DHCP |
| Power | • Power adapter: AC 100~240V input and DC 5V/1.2A output |
| Environmental Factors | • Operating humidity: 10%-95% • Operating temperature: 0 to 40°C (+32 to 104°F) • Storage temperature: -30 to 70℃ |
| Package Features | • Handset size: 151.0 x 49.5 x 21 mm • Handset weight: 126 g • G.W/CTN: 8.03 kg • N.W/CTN: 7.36 kg • Package contents – Yealink AX83H Phones – Charger Cradle – Rechargeable Battery – Belt Clip – Quick Start Guide – Power Adapter |
